Motion Raceworks 1993-02 Camaro / Firebird 4th Gen F-Body Billet Aluminum Master Cylinder Conversion Kit 20-10014-3

Note: Master cylinder need to match the brake system they are being used with. To access our Brake Calculator page to determine what is best for your vehicle click the following link:

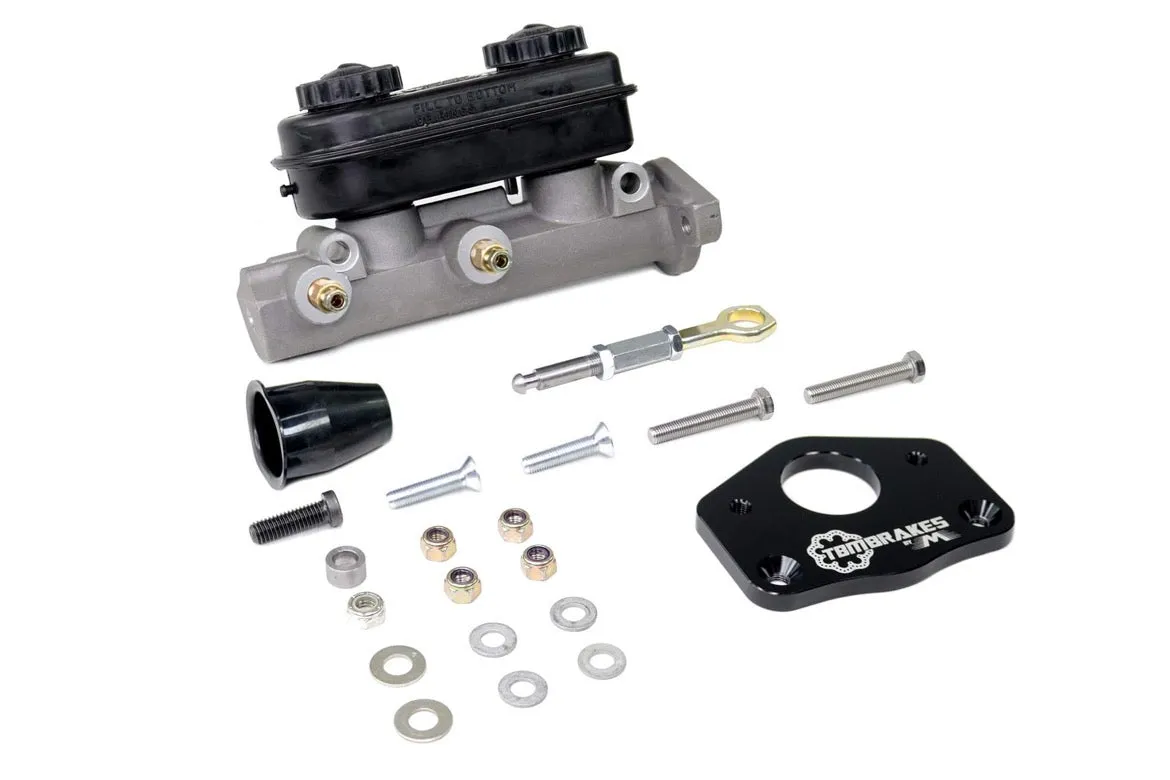

Included:

• 6:1 Pedal Ratio optimized for manual brakes

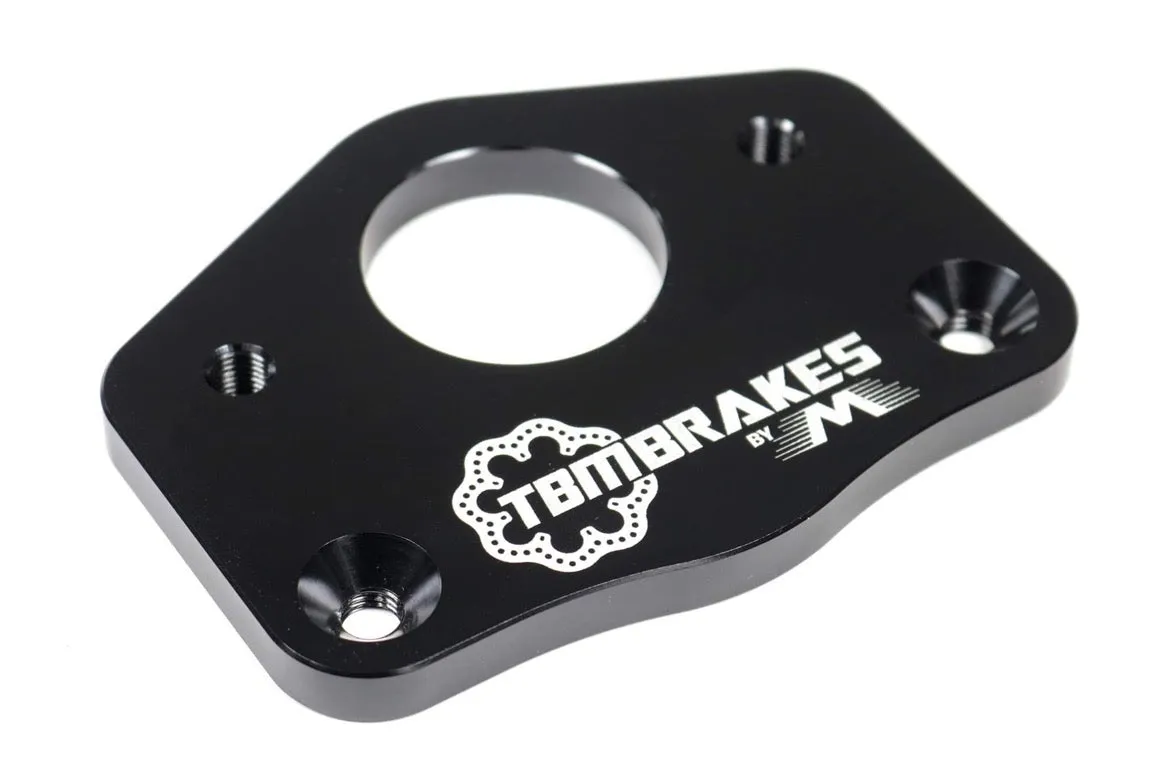

• Billet Manual Master Cylinder Firewall Plate
• Strange Dual Mopar Master Cylinder
• Hardware for Installation
• Brake Push Rod w/ Heim Joint for attaching to pedal
• Fittings for Master Cylinder

Our Manual Brake Master cylinder kit utilizes a billet firewall mounting plate CNC'd from 6061 Aluminum. This plate is designed to utilize a Strange Engineering Mopar Dual Master Cylinder. This requires you to drill your firewall and pedal assembly top mounting holes. The brake pedal will also need to be drilled for the master cylinder pushrod. Kit includes all hardware necessary, Strange Engineering Mopar Dual Master Cylinder

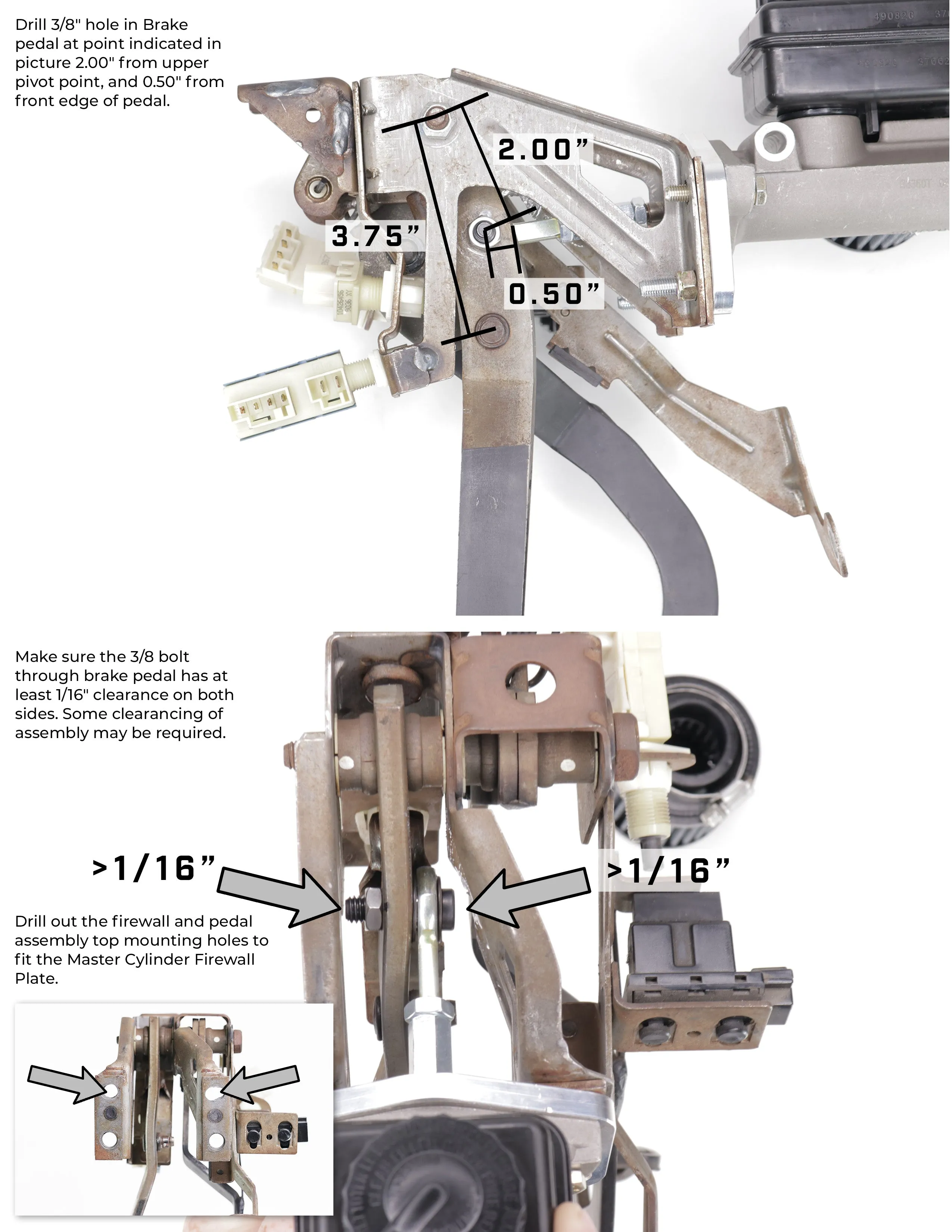

Note: This kit improves the brake pedal ratio for use with manual brakes vs. power brakes. The mounting position on the brake pedal will be different to accommodate the necessary 6:1 pedal ratio intended for manual brake systems. Please see installation instructions below for proper pushrod location and firewall/pedal assembly modifications.

Best of all, this kit is MADE IN THE USA!

Note: We recommend a 6-7:1 pedal ratio on all manual brake systems

Watch this video to understand the proper pedal ratio and master cylinder size for your vehicle

Do's and Don'ts for proper master cylinder setup: Must Watch!
