| Product Attribute | Attribute Value |
|---|---|
| Adjustment Range | 3.1 to 7 PSI (21.37 to 48.26 kPa) |
| Connection | 1/8-27 NPT Male Thread |
| Current Consumption | 15, 8, 4 A (Resistive), 1, 0.5 A (Inductive) |
| Current Rating | 15 A |
| Power Supply | 6, 12, 24 VDC (Resistive), 120, 240 VAC (Inductive) |
| Pressure, Operating | 4 PSI (27.58 kPa) |
| Series | |
| Set Point | 3.1 to 7 psi |
| Size, Port | 1/4" NPT |
| Temperature, Ambient | -40 to 121°C |
| Voltage Rating | 6, 12, 24 VDC (Resistive), 120, 240 VAC (Inductive) |
Overview

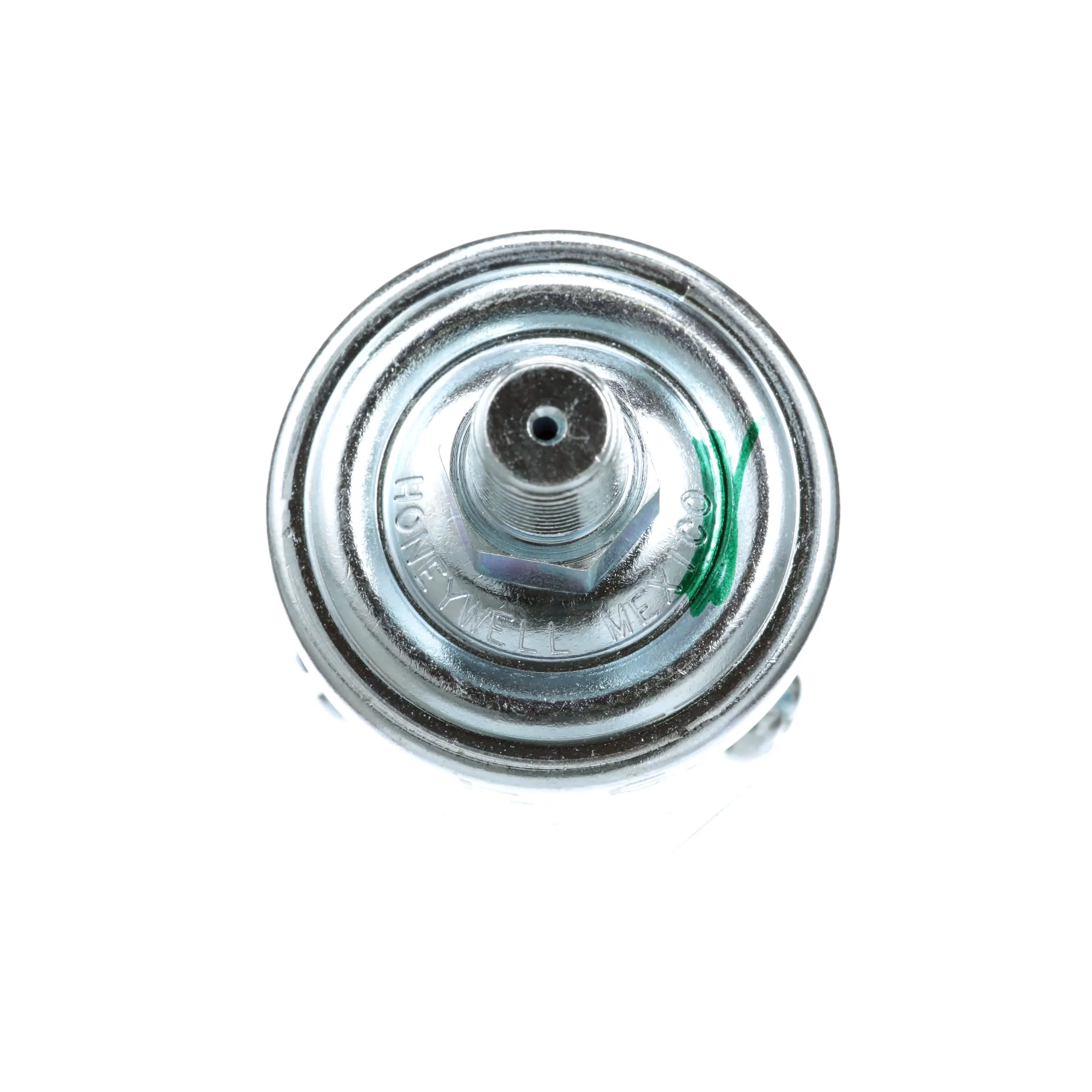

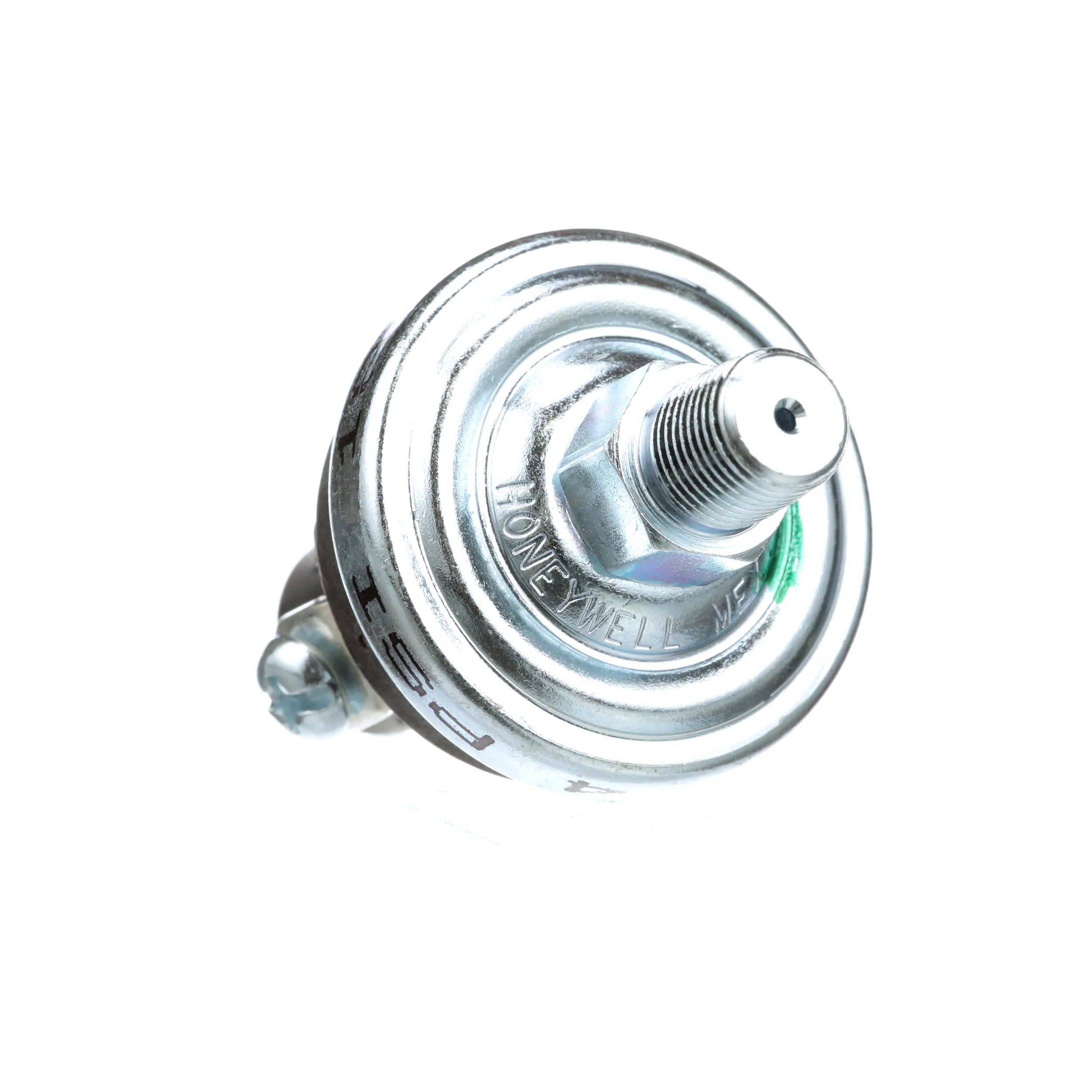

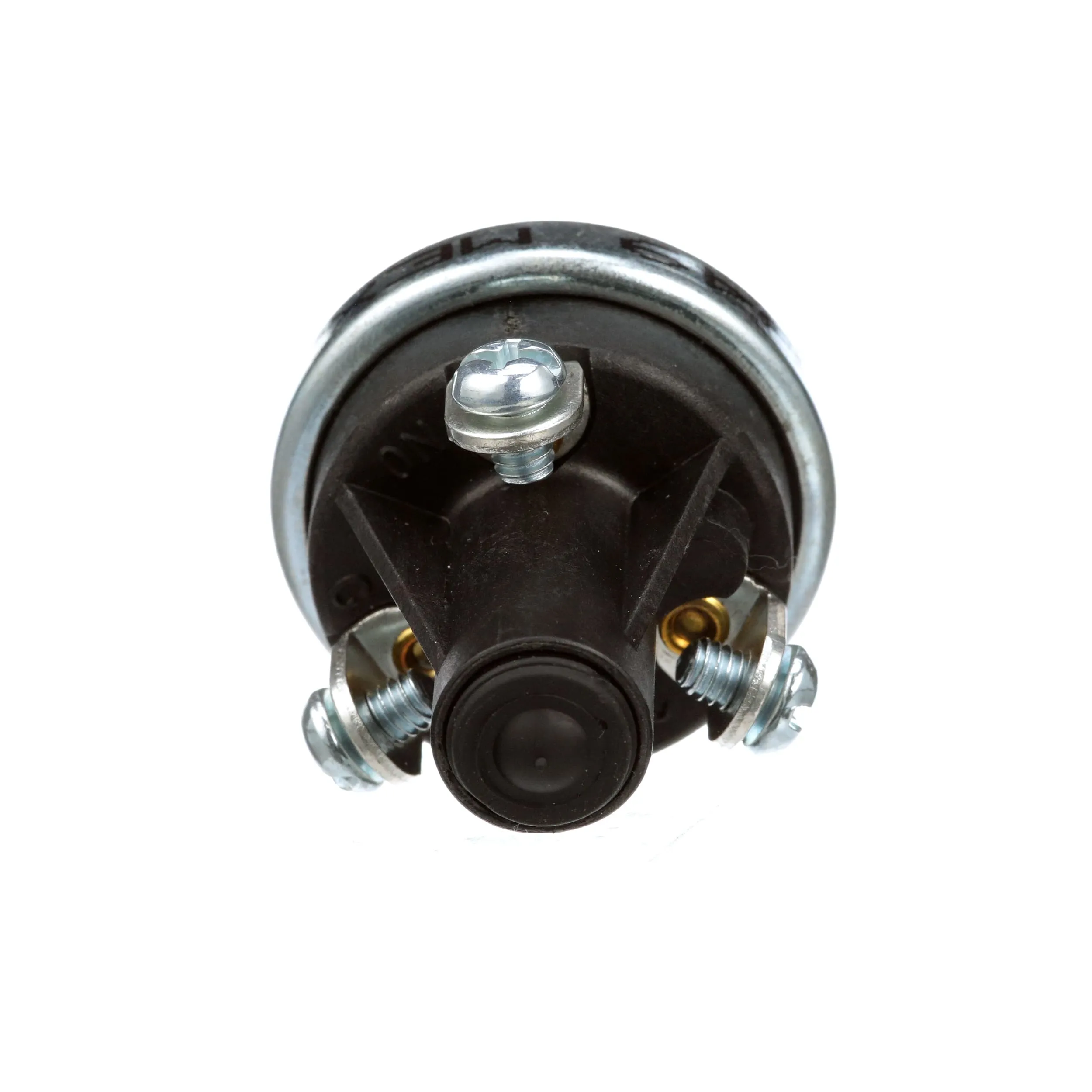

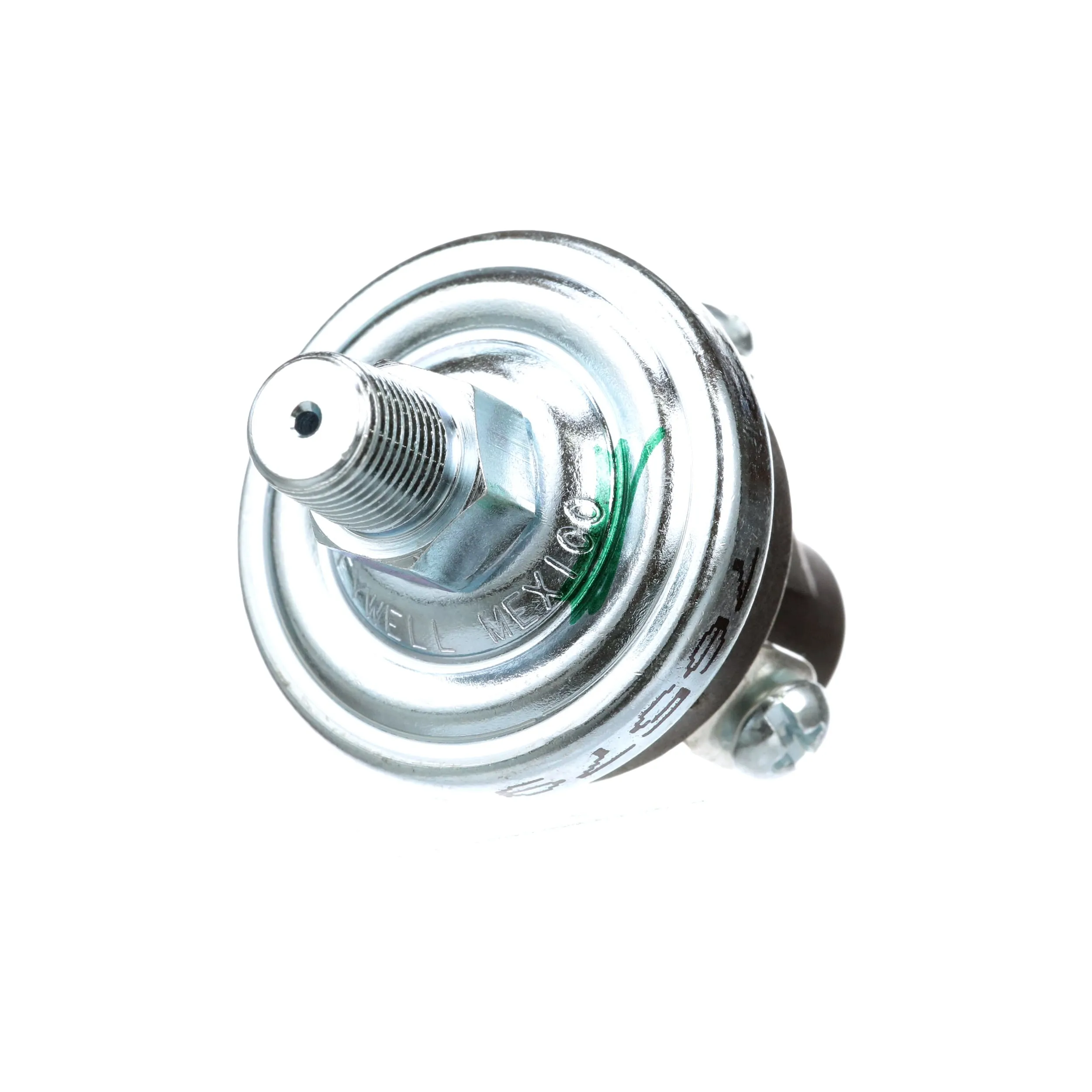

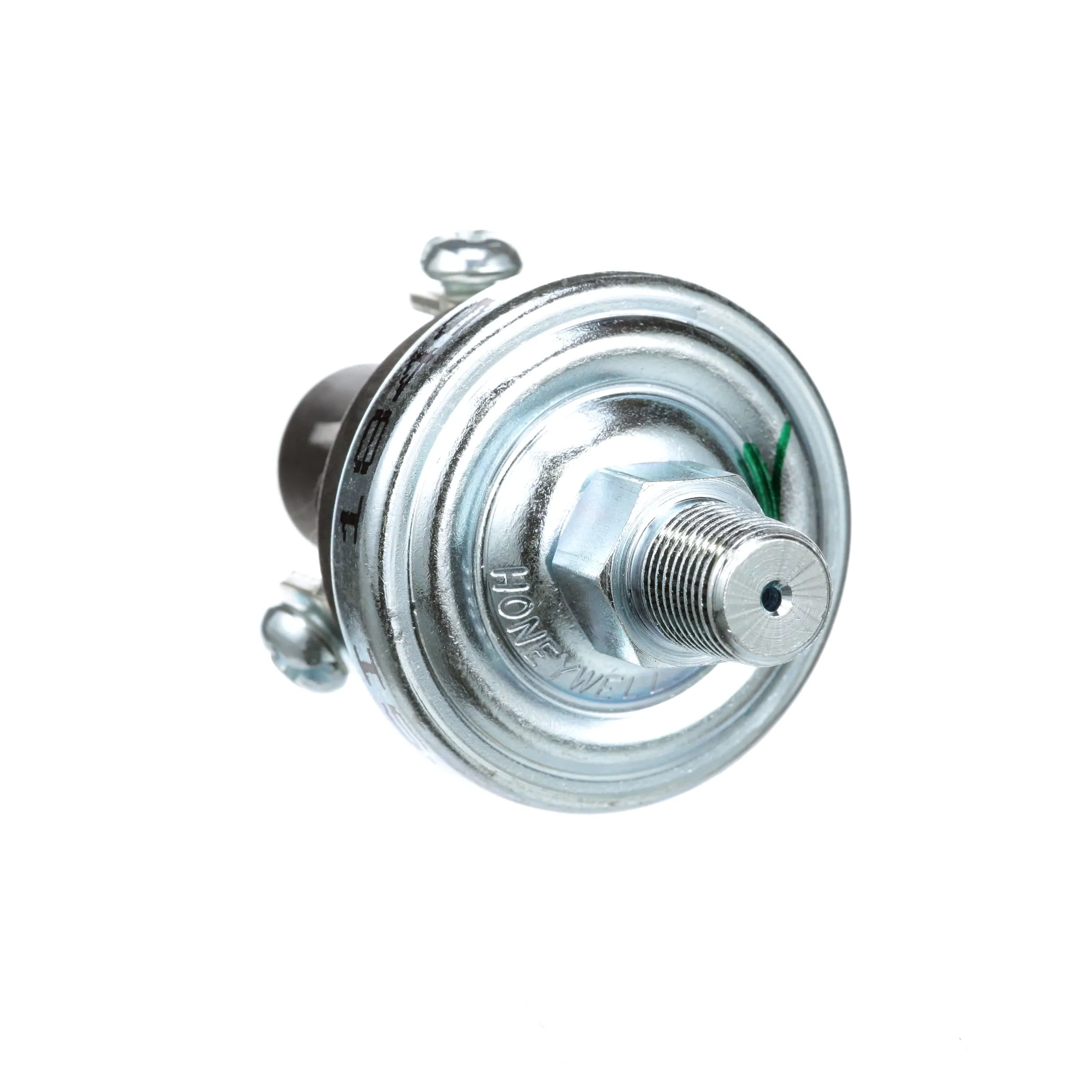

Honeywell 5000 Series - Extended Duty Pressure Switch With Direct Action Blade Contacts:
5000 Series pressure switch with standard terminal.These switches sense a change in the pressure, opening or closing an electrical circuit when the designated set point is reached. Honeywell S&C offers an impressive line of standard products, but our engineering expertise and understanding afford us the ability to modify existing parts or create an original component per a customer's specifications.
Features:
Applications:
