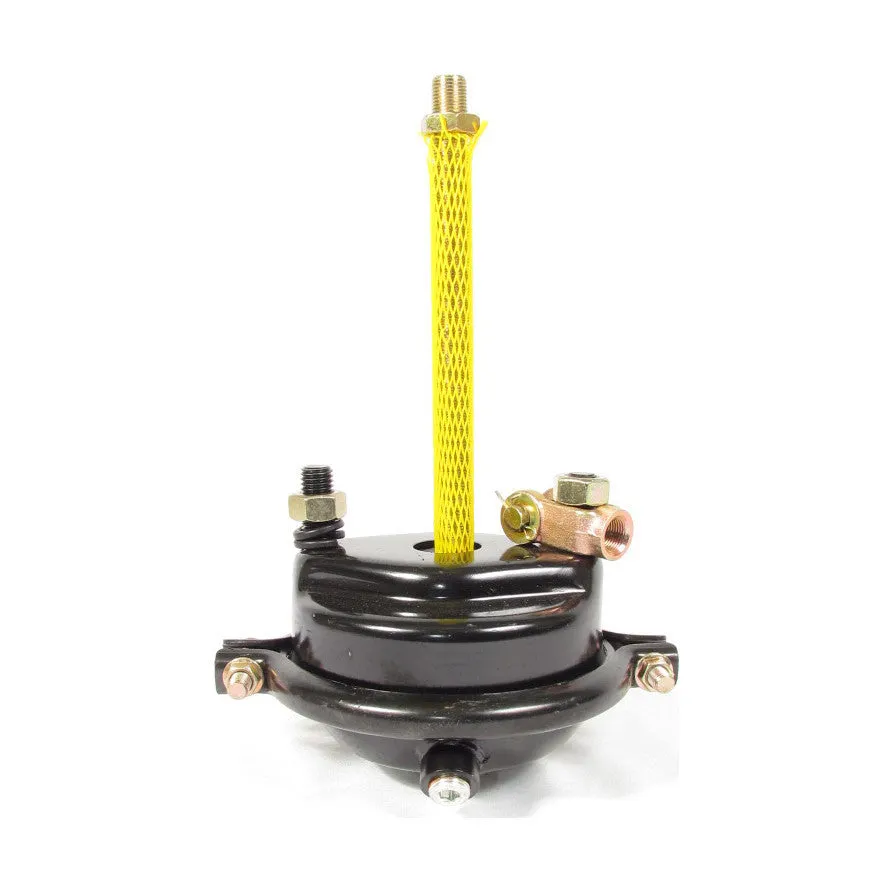

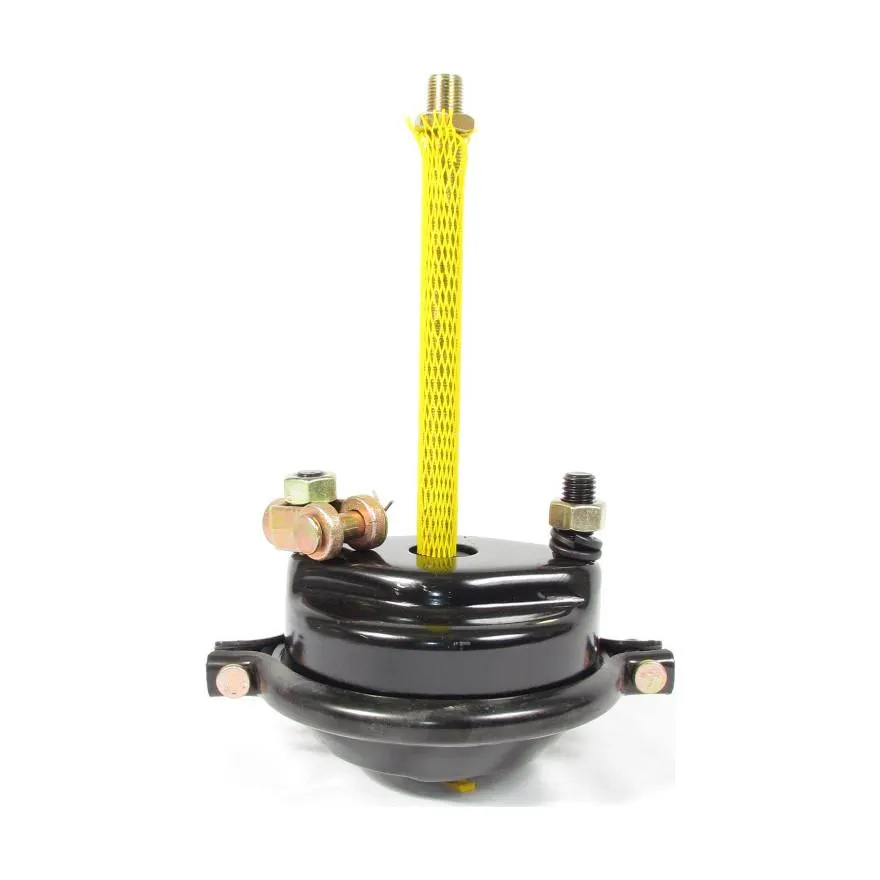

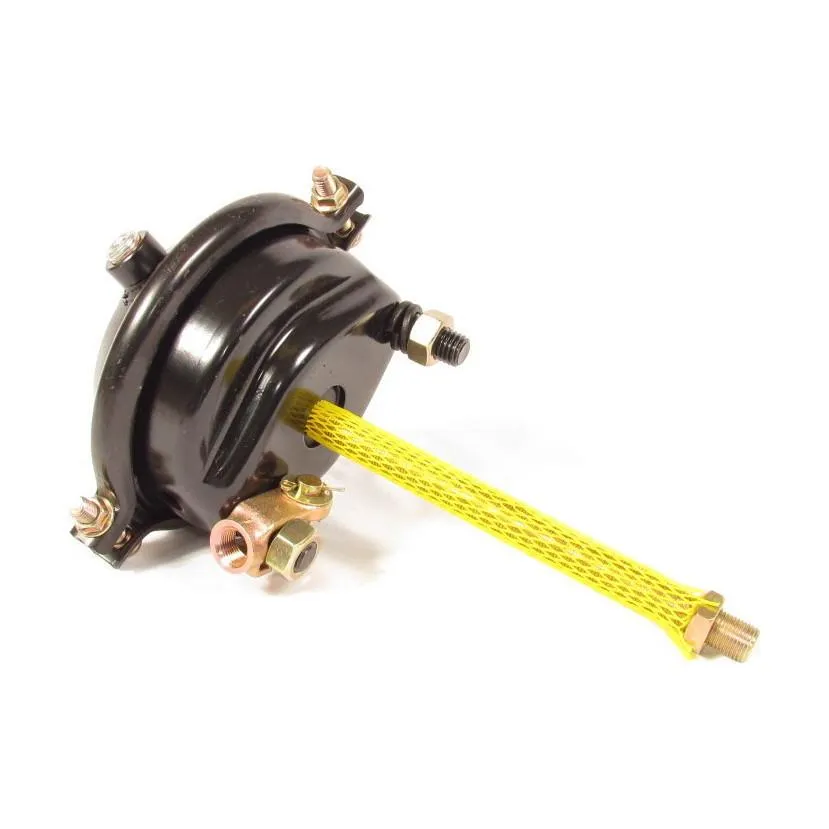

Specifications:

• Part: Service Chamber Assembly
• Chamber Type: Brake Chamber
• Air Port Position: 90°
• Clevis: Threaded
• Diaphragm Type: Single
• Finish: Powder Coated
• Model: Type 16
• Outside Diameter: 4.59"
• Push Rod Length: 10"
• Stroke Type: Standard
• Stroke Length: 2 1/4"
• Stud Distance: 3"
• Thread Diameter: 1/2" - 20 UNF
• Notes: Brake service chamber for S-Cam brakes

CrossReference:

• Automann: 179.SC16
• Bendix: 800823, 288799
• Euclid: E-16S, E-BC16S
• Flagg: 16S
• Haldex: SC16
• Meritor: R870016
• Velvac: 30015

Manufacture Standards:

Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.

Our air brake components have been passed the following tests:

• Salt spray test
• Leak tightness
• Endurance test
