Specifications:
- Part OEM: Bendix 281459

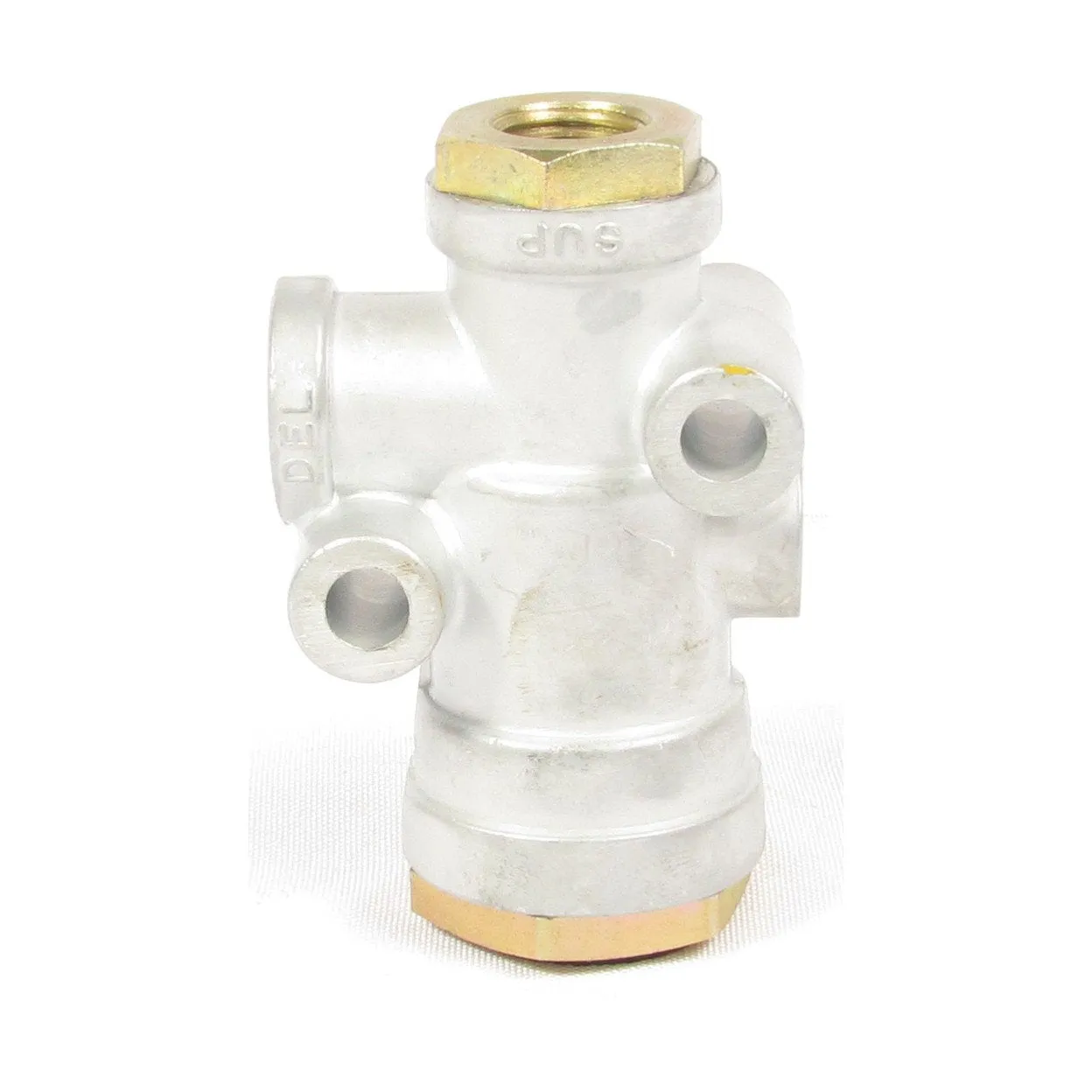

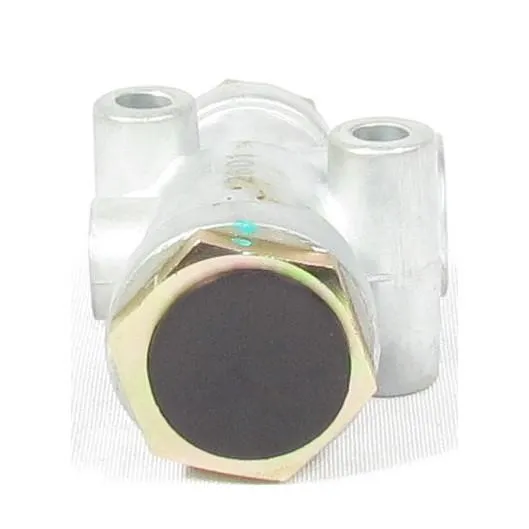

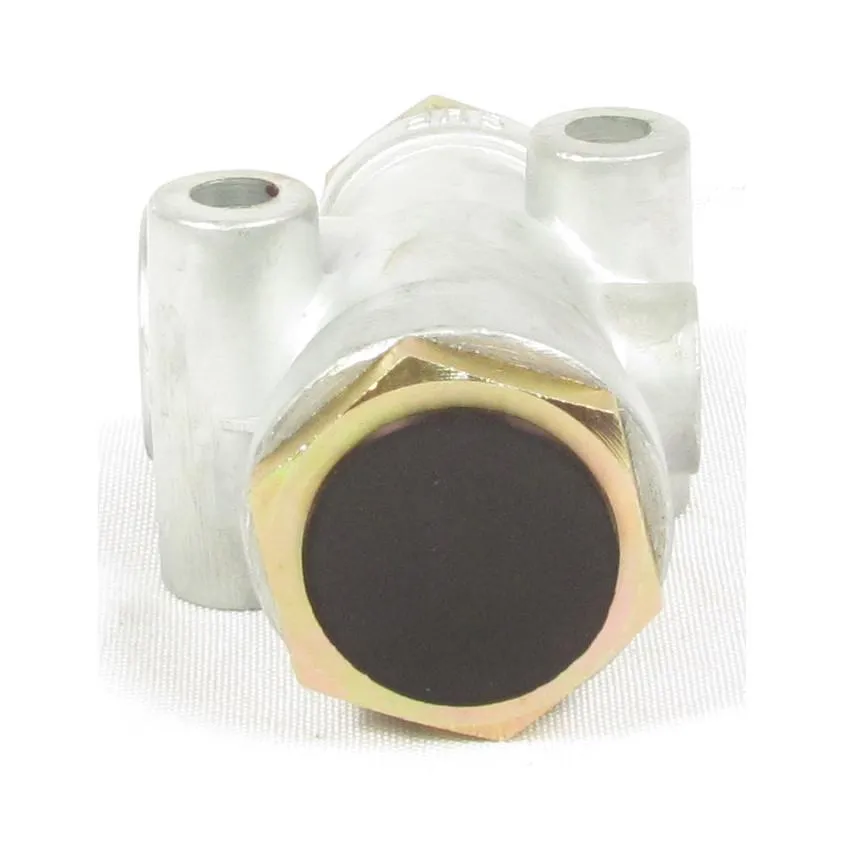

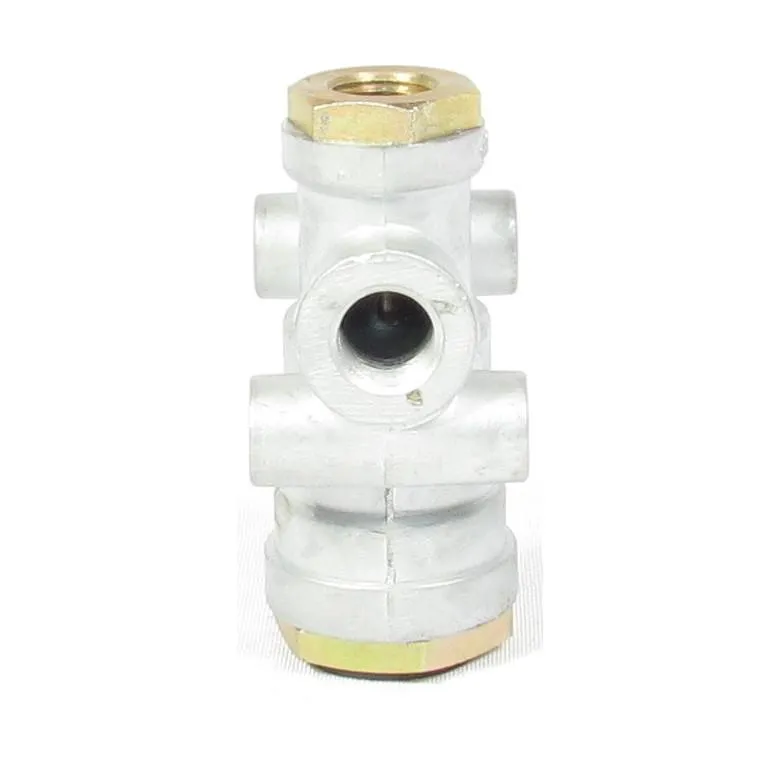

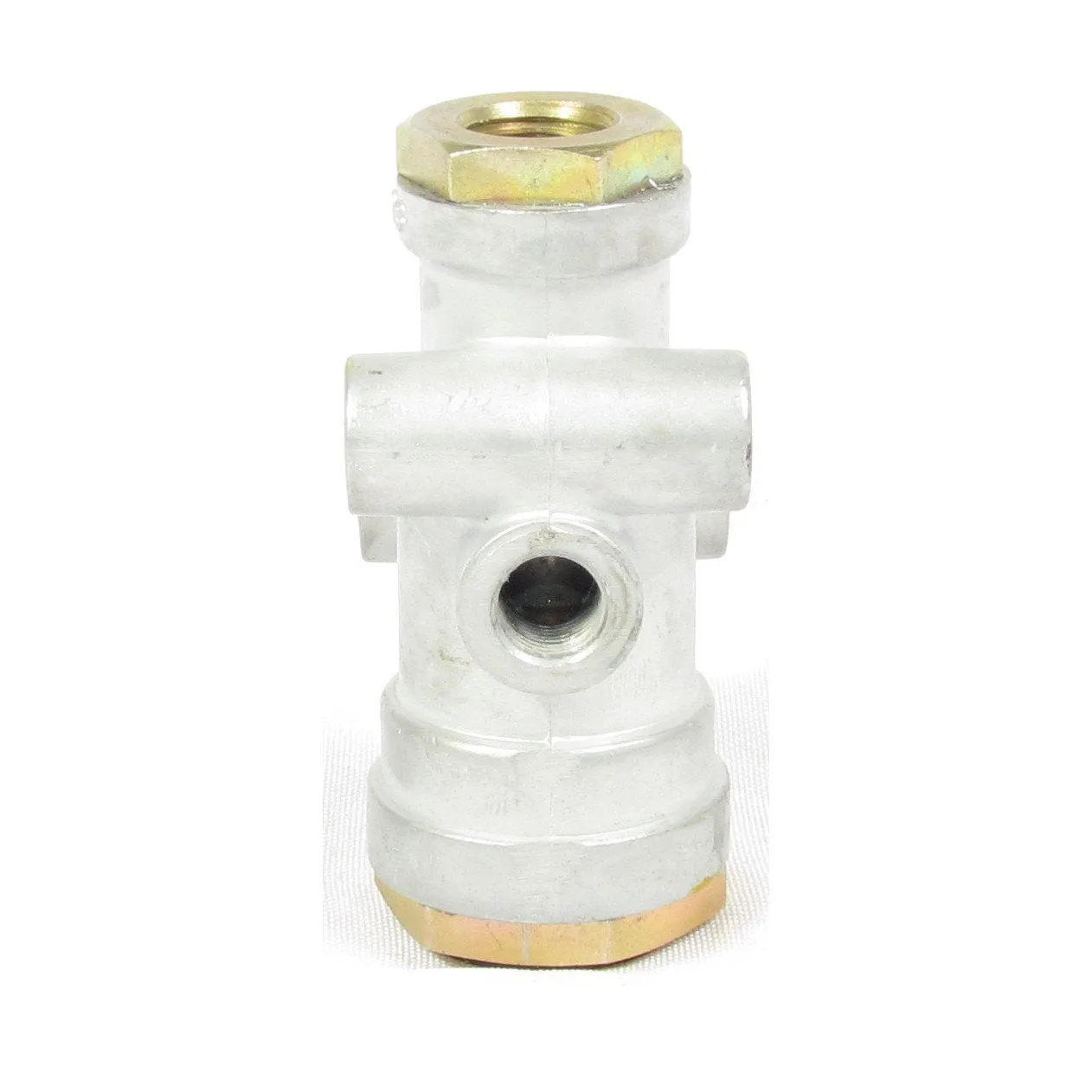

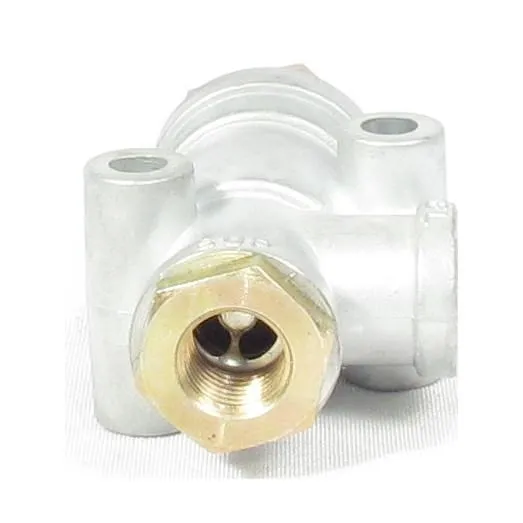

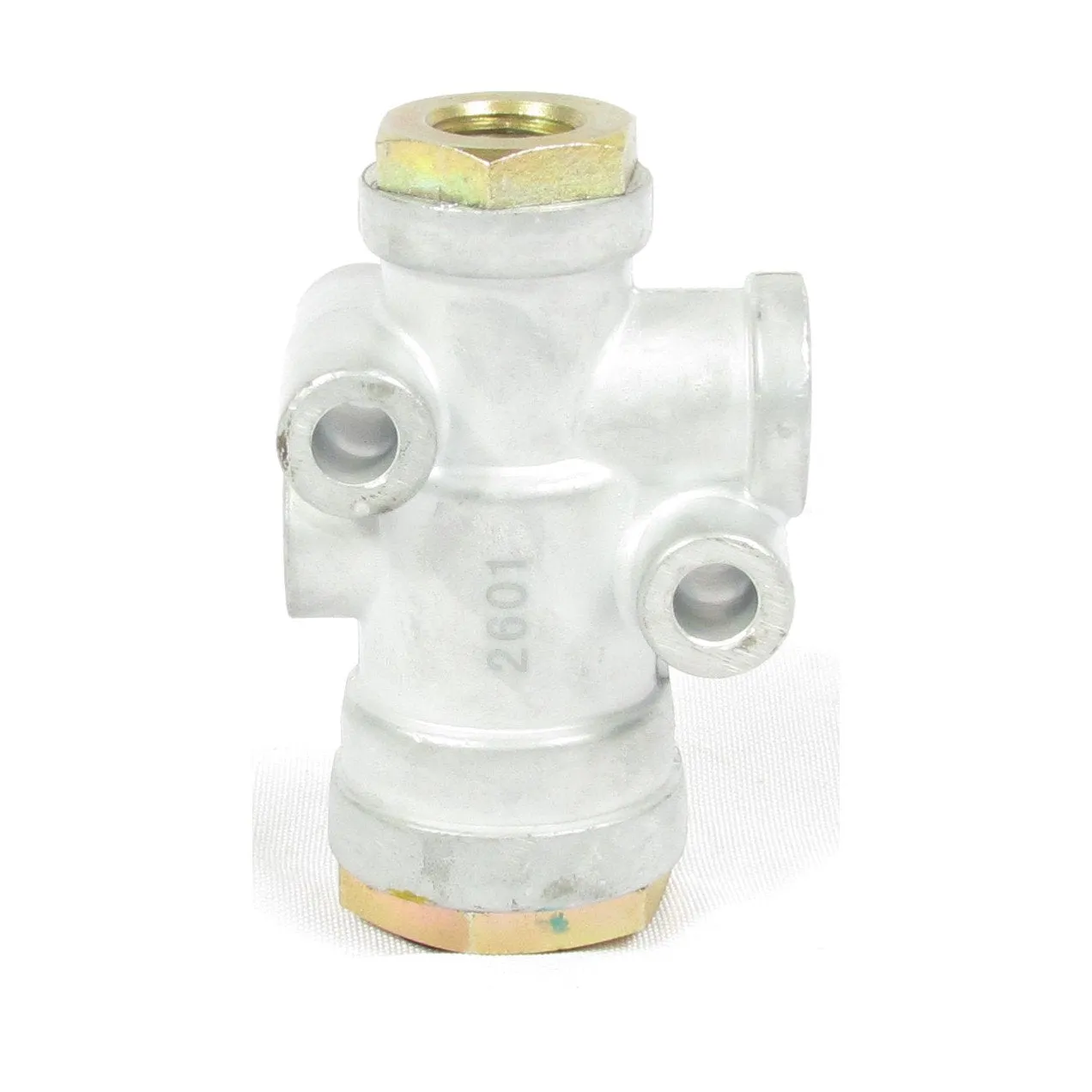

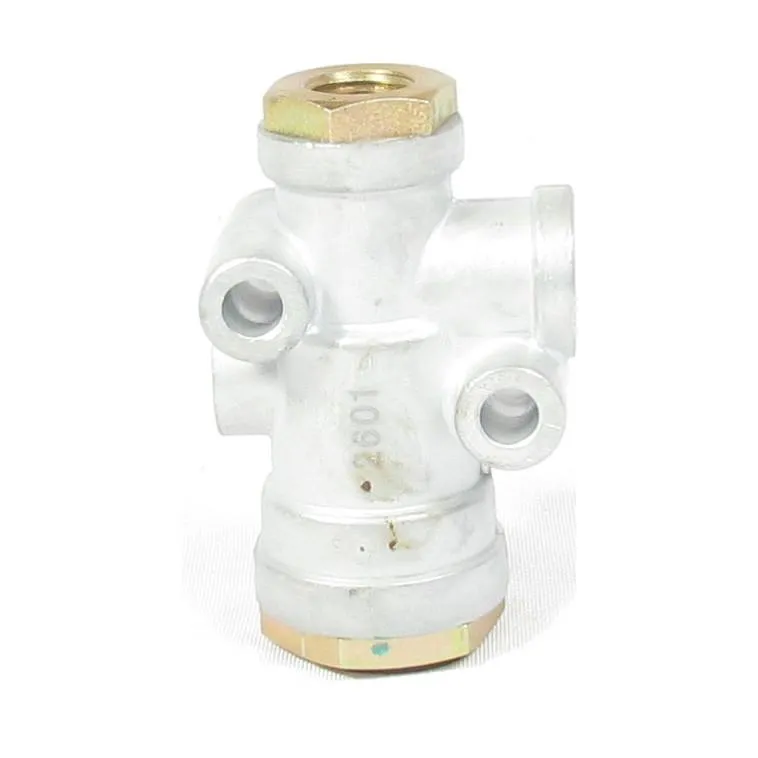

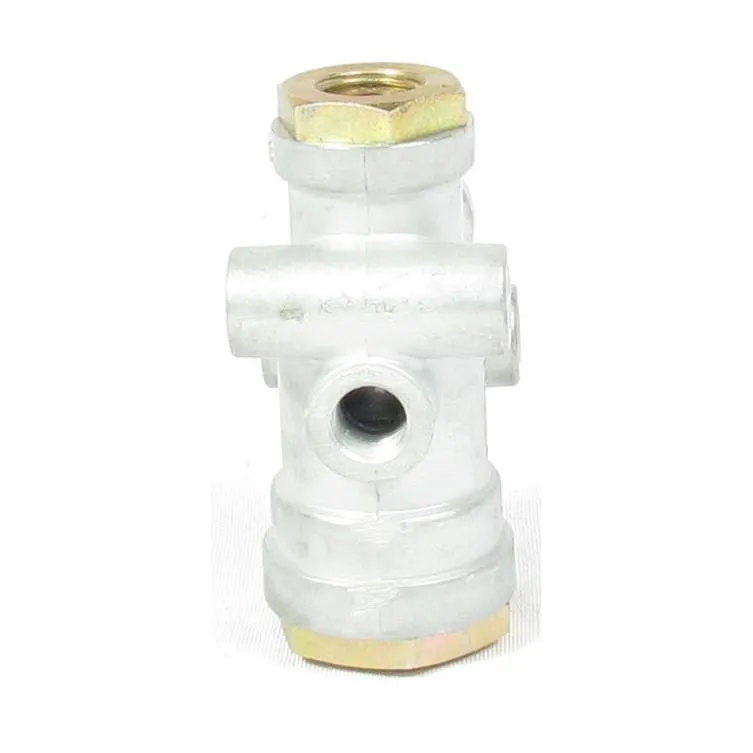

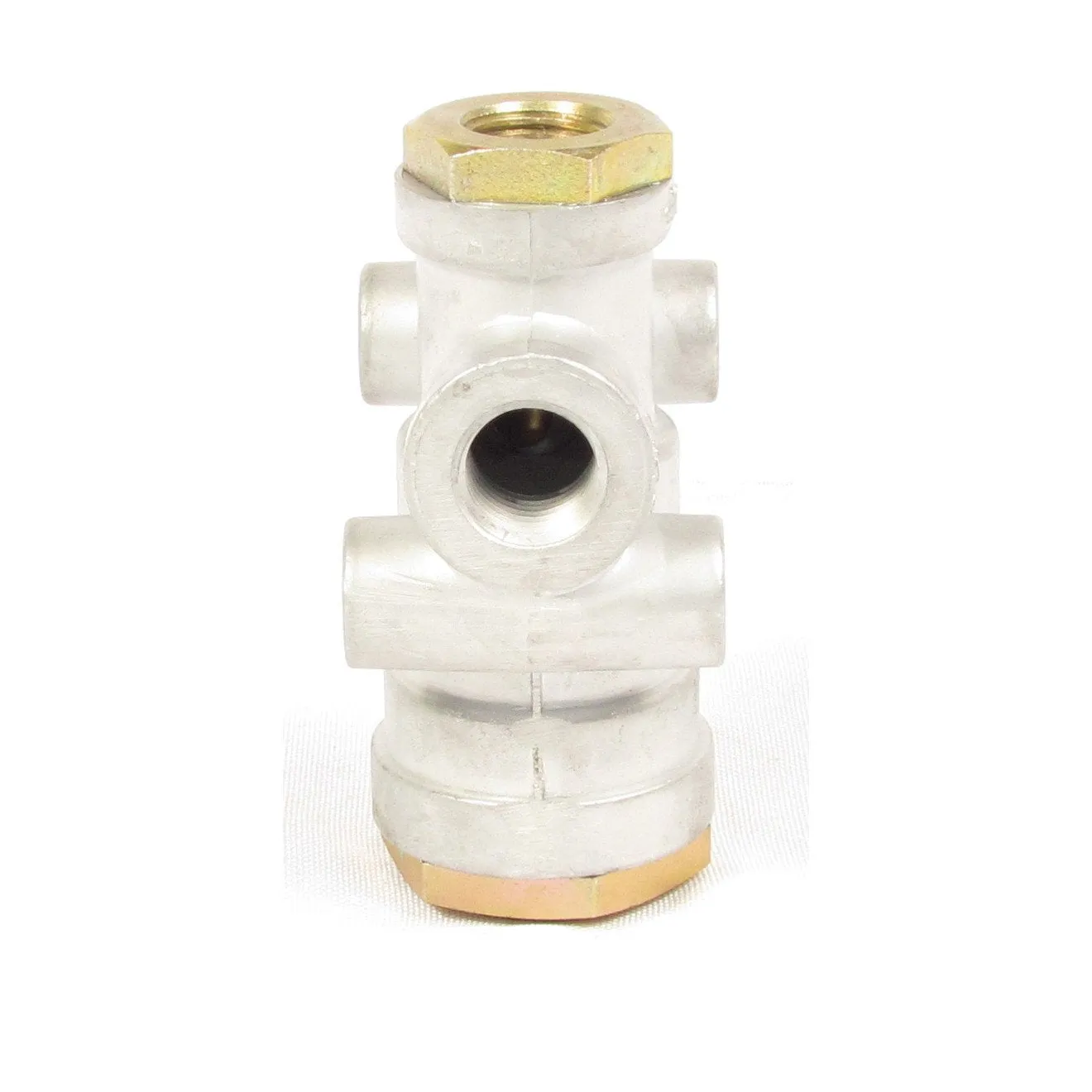

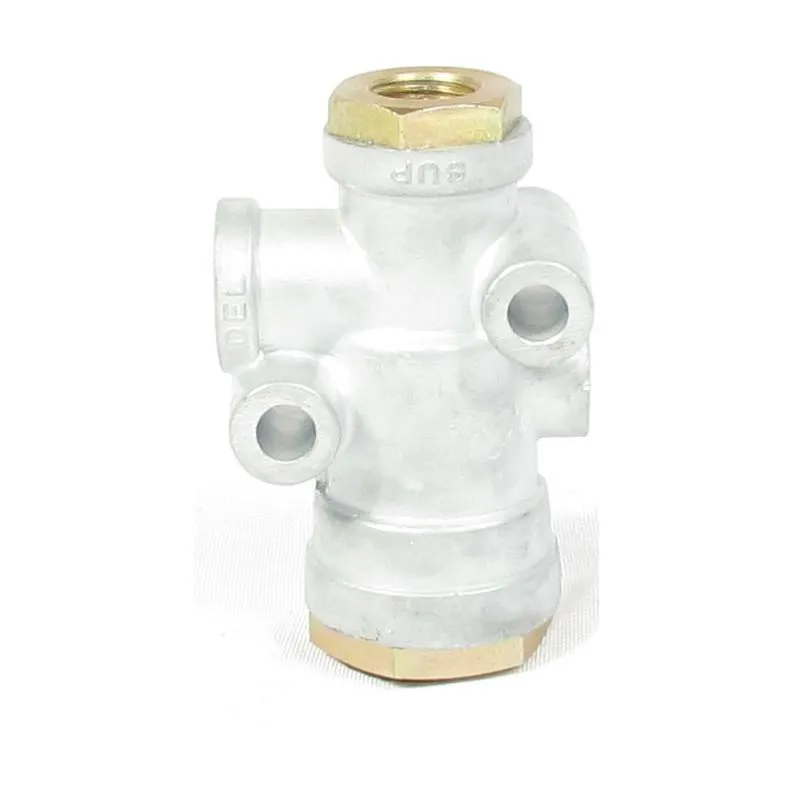

- Part: TR-3 Type Inversion Valve
- Inlet Opening Descending Pressure Common Control: 25 PSI
- Exhaust Opening Ascending Pressure Common Control: 40 PSI
- Inlet Opening Pressure Constant Supply Variable: 8 PSI
- Supply Port: (1) 1/4” P.T.
- Delivery Port: (1) 1/4” P.T.
- Control Port: (1) 1/8” P.T.
- Material: Die Cast Zinc
- Notes: Normally Open/Air Operated
CrossReference:
- Automann: 170281459
- Bendix: 281459, 281459N, 281459X
- Bepco Inc: 281459
- International-Navistar: 1617036C91
- Mack: 20QE2123R
- Tectran: TV281459
